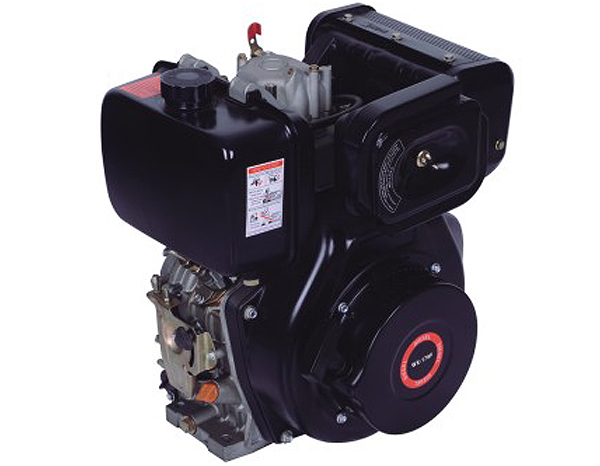

| Model | WX-178F/FA |
| Type | Single-cylinder,4-stroke air-cooled diesel engine |
| Combustion system | Directinjection |
| Bore X sttoke(mm) | 78X62/78X64 |
| Dlsplacement(cc) | 296/305 |
| Engine speed(rpm) | 3000/3600 |
| Maximum output(hp) | 5.7/7 |
| Conetinous output(hp) | 5.2/6 |
| Power take off | Crankshaft or camshaft(camshaft PTO rpm is1/2) |
| Starting system | Recoil or electric(optional) |
| Fuel tank capacity(L) | 3.5 |
| Lube oil capacity(L) | 1.1 |
| Dimensions LX WX H(mm) | 440X370X480 |
| Net weight(recoil)(kg) | 33 |
| Net weight(electric)(kg) | 38 |
| Fuel type | 0#,-10#,-20# |
| Lube oil type | CD Grade or SAE 10W-30.SAE 15W-40 |
| Option | Oil bath air cleaner |
